3. Convergence rates

In a prior activity, we computed the \(L_2\) best approximation of some given function \(u\) from a finite element space \(S_h\). Given a function \(\newcommand{\om}{\varOmega}\) \(u \in L_2(\om)\), its Best Approximation Error from a finite element subspace \(S_h\) of \(L_2(\om)\) is

\[ \text{BAE}(u) = \min_{v \in S_h} \| u -v \|_{L_2(\om)}. \]

In this notebook, we are interested in quantifying how this BAE becomes small as the mesh size \(h\) is decreased and as the polynomial degree \(p\) increases. This is done by computing rates of observed convergence. To fix a finite element space, we set \(S_h\) to \(W_{hp}\) throughout, namely the “DG space” \( W_{hp} = \{ w: w|_K\) is a polynomial of degree \(\le p\) on each mesh element \(K\}.\)

3.1. Orthogonal projections

In a prior activity, we saw that the best approximation error can be computed by minimizing a nonlinear functional. In exercises, we have also seen that the mapping from \(u\) to its \(L_2\)-best approximation from a finite element space is the \(L_2\)-orthogonal projection onto the finite element space. Let \(Q_{hp}: L_2(\om) \to W_{hp}\) denote the \(L_2\)-orthogonal projection onto \(W_{hp}\). The norm and the inner product in \(L_2(\om)\) are, respectively, defined by

\[ (u,v)_{L_2(\om)} = \int_{\om} u(x) v(x)\, dx, \qquad \| u \|_{L_2(\om)} ={(u,u)^{1/2}_{L_2(\om)}}. \]

We will use the following two properties from exercises:

Property 1. The \(L_2\)-projection \(Q_{hp} u\) is the best approximation to a \(u \in L_2(\om)\) from the subspace \(M\), namely,

\[\tag{1} \| u - Q_{hp} u \|_{L_2(\om)} = \min_{w \in W_{hp}} \| u - w \|_{L_2(\om)}. \]

Property 2. \(Q_{hp} u\) satisfies

\[\tag{2} (Q_{hp} u , w)_{L_2(\om)} = (u, w)_{L_2(\om)}\quad \text{ for all } w \in W_{hp}. \]

for any \(u \in L_2(\om)\).

The right hand side of equation (1) equals the BAE\((u)\) of \(u\) from \(W_{hp}\). Thus Property 1 implies that we can compute BAE\((u)\) if we can compute \(Q_{hp} u\) and the norm of the difference \(\| u - Q_{hp} u \|_{L_2(\om)}\).

3.2. Computing the \(L_2\)-orthogonal projection

Property 2 gives us a way to compute the \(L_2\)-orthogonal projection by solving a linear system, as we shall see below. Property 1 then tells us that we have in fact computed the best approximation. Therefore this gives us an alternate linear method, (at least superficially distinct) from the nonlinear method of a prior notebook, to compute best approximations.

Namely, given a \(u \in L_2(\om)\), by (2), its best approximation from \(W_{hp}\) is the function \(q = Q_{hp} u\) in \(W_{hp}\) satisfying

\[ (q , w)_{L_2(\om)} = (u, w)_{L_2(\om)}\quad \text{ for all } w \in W_{hp}. \]

We will encounter many more equations of this type in this course, so it pays to delve into a bit more detail. All such equations will be of the form

\[ \text{ find } q \in W: \qquad a(q, w) = b(w), \qquad \text{ for all } w \in W \]

and they are often called equations of forms or variational equations.

For the projection computation, \(a(\cdot,\cdot)\) is the just the inner product \((\cdot, \cdot)_{L_2(\om)}\), while \(b(\cdot)\) equals \((u, \cdot)_{L_2(\om)}\).

Let us get acquainted with some terminology related to equations like \(a(q, w) = b(w)\) right away:

• The set of functions from which the solution \(q\) is to be found is called the set of trial functions.

• The set of functions \(m\) for which the equation must hold is called the set of test functions. (In the projection example, the spaces of trial and test functions are the same, but they need not be so in other examples.)

• The right hand side is called a linear form since it is linear in the test function \(w\). (In the projection example, it contains the problem data involving the given function \(u\).)

• The left hand side is called a bilinear form (since it is linear in both the trial function \(q\) and the test function \(w\)).

You will see these names being used for corresponding ngsolve objects below.

import ngsolve as ng
from netgen.occ import unit_square
from ngsolve import dx, x, y, sin, BilinearForm, LinearForm, Mesh

def ProjectL2(u, W):
    """ Input: u as a CF.
        Output: L_2-projection Q u as a GF. """
    Qu = ng.GridFunction(W)
    q = W.TrialFunction()  # Alternate one-liner:
    w = W.TestFunction()   #   q, w = W.TnT()
    a = BilinearForm(q*w*dx)
    b = LinearForm(u*w*dx)

    with ng.TaskManager():
        a.Assemble()
        b.Assemble()
        Qu.vec.data = a.mat.Inverse(inverse='sparsecholesky') * b.vec
    return Qu

Before explaining the code, let us visualize a smooth function and its projection into the space of piecewise constant functions.

from ngsolve.webgui import Draw

h = 0.2
mesh = ng.Mesh(unit_square.GenerateMesh(maxh=h))
p = 0    # the piecewise constant DG space
Whp = ng.L2(mesh, order=p)

u = sin(5 * x * y)
Qu = ProjectL2(u, Whp)

Draw(u, mesh); Draw(Qu);

3.3. Conversion to a matrix problem

In the code above, notice the Assemble and Inverse methods. The first converts equations of forms

\[\tag{3} \text{ find } q\in W: \qquad a(q, w) = b(w), \qquad \text{ for all } w \in W \]

in a generic space \(W\), represented as W in the computations, into a matrix system, using a basis for W, as explained next.

Suppose \(\Theta_1, \ldots, \Theta_N\) form a set of global shape functions of the finite element space W. (We have talked about global shape functions both in 1D and in 2D for several finite element spaces in prior notebooks.) Then expanding the unknown function \(q \in W\) in the basis of global shape functions,

\[\tag{4} q = \sum_{j=1}^N X_j \Theta_j, \]

we find that, with \(w=\Theta_i\), the equation (3) imply

\[ \sum_{j=1}^N a(\Theta_j, \Theta_i)\, X_j = b(\Theta_i) \]

for every \(i=1, \ldots, N\). Hence, defining a matrix \(A \in \mathbb{R}^{N \times N}\) and a vector \(B \in \mathbb{R}^N\) by

\[ A_{ij} = a(\Theta_j, \Theta_i), \qquad B_i = b(\Theta_i), \]

we have converted the problem of finding \(q \in W\) into a problem of finding a vector \(X \in \mathbb{R}^N\) satisfying

\[ A X = B. \]

This is the process that happens behind the scenes when the Assemble method is called. In the code for the function ProjectL2, the object a.mat contains the matrix \(A\) (in a sparse format) and b.vec contains the vector \(B\) after the Assemble methods are completed. Matrices \(A\) generated in this way from a bilinear form \(a(\cdot, \cdot)\) are called stiffness matrices of the form \(a\).

To compute the vector \(X\), we need to invert the sparse matrix \(A\) since

\[ X = A^{-1} B. \]

This is what happens when the method a.mat.Inverse is called.
Knowing the vector \(X\) is the same as knowing everything about the function \(q\) due to (4).

The sparsecholesky keyword within the Inverse method calls an ngsolve implementation of a version of Cholesky factorization for sparse matrices. It only works for symmetric/Hermitian and positive definite matrices. (Is the matrix for the projection problem such a matrix?) For more general sparse matrices, it is advisable to use a professional sparse matrix solver such as UMFPACK, PARDISO, or MUMPS. A standard installation of ngsolve currently contains the former and is the default option in Inverse.

3.4. Successive mesh refinements

We now proceed to study the best approximation error over a collection of meshes whose element shapes do not vary too much over the collection, even if their element sizes might vary considerably. A sequence of increasingly finer meshes where the element angles never change from those of the coarsest mesh is obtained by a simple uniform refinement. This is illustrated in the sequence of mesh images below.

mesh = Mesh(unit_square.GenerateMesh(maxh=0.3))
Draw(mesh);

mesh.ngmesh.Refine(); Draw(mesh);

mesh.ngmesh.Refine(); Draw(mesh);

Clearly this process of uniform refinement, when started on any coarse mesh, does not generate any new angles within the new elements, i.e., each triangular element of this infinite sequence of meshes is similar (in the geometric sense) to one of the triangles in the initial coarse mesh.

3.5. Projections on uniform refinements

Next, we compute the \(L_2\) projection on a sequence of uniform refinements, starting from a very coarse mesh, using the function below. We then compute the \(L_2\)-norm of the error \(\| u - Q_{hp} u\|_{L_2(\om)}\) using the Integrate method provided by ngsolve.

from ngsolve import Integrate, sqrt
import numpy as np

def ProjectOnSuccessiveRefinements(u, p=0, hcoarse=1, nrefinements=8):
    """Project to f.e. spaces on a sequence of uniformly refined meshes."""

    Qus = []; errors = []; meshes = []; ndofs = []
    mesh = ng.Mesh(unit_square.GenerateMesh(maxh=hcoarse))

    for ref in range(nrefinements):
        W = ng.L2(mesh, order=p)
        Qu = ProjectL2(u, W)
        sqrerr = (Qu - u)**2

        Qus.append(Qu)
        errors.append(sqrt(Integrate(sqrerr, mesh)))
        meshes.append(ng.Mesh(mesh.ngmesh.Copy()))
        ndofs.append(W.ndof)

        mesh.ngmesh.Refine()

    return Qus, np.array(errors), ndofs, meshes

We select an infinitely smooth function \(u\) for the initial experiments (and you can experiment with less regular functions in exercises). Additionally, let us ensure that the smooth \(u\) has some mild oscillations (as otherwise the approximation errors reduce very rapidly and become too close to machine precision and rate computation becomes unreliable).

u = sin(5*x*y)
Qus, es, ns, _ = ProjectOnSuccessiveRefinements(u, p=0)
errors = {0: es}; ndofs = {0: ns}
es  # display the sequence of error norms just computed

array([0.61147848, 0.3888668 , 0.19805796, 0.09974437, 0.04996571,
       0.02499467, 0.01249882, 0.00624959])

Observe that this sequence of error norms are decreasing, approximately halving at each step. This immediately gives us an indication of the expected rate of convergence of the error: indeed, any quantity that decreases to zero like \(O(h)\) will halve each time the mesh size \(h\) is halved. (In contrast, a quantity that decreases like \(O(h^2)\) will quarter each time \(h\) is halved.) Anticipating more general error sequences in other cases, let us get organized for systematic rate computations.

3.6. Estimate rate of convergence

We want to estimate at what rate the errors on successive refinements (stored in the above list es) go to zero. Let \(e_i\) denote the \(i\)th element of the list.

Specifically, what we would like to determine is the number \(r\), the rate of convergence, such that the errors are bounded by \(O(h^r).\) If the sequence \(e_i\) goes to zero like \(O(h_i^r)\), then since the refinement pattern dictates

\[ h_i = \frac{h_0}{2^i}, \]

we should see \(e_{i+1} / e_i \sim O(2^{-r})\). Hence to estimate \(r\), we compute

\[ \log_2 \frac{e_{i+1}}{ e_i}. \]

These logarithms are computed and tabulated together with the error numbers using the formatting function below.

from prettytable import PrettyTable

def TabulateRate(name, dat, h0=1):
    """Inputs:
        name = Name for second (error norm) column,
        dat = list of error data on successive refinements
        log2h0inv = log2(1/h0), where h0 is coarsest meshsize.
    """
    col = ['h', name, 'rate']
    t = PrettyTable()
    h0col = ['%g'%h0]
    t.add_column(col[0], h0col + [h0col[0] + '/' + str(2**i)
                                  for i in range(1, len(dat))])
    t.add_column(col[1], ['%.12f'%e for e in dat])
    t.add_column(col[2], ['*'] + \
                 ['%1.2f' % r
                  for r in np.log(dat[:-1]/dat[1:])/np.log(2)])
    print(t)

Next, we will apply this function to tabulate rates of convergence for each \(p\) using a series of uniformly refined meshes. Both the error norms and the rate computed using the log-technique are tabulated for each degree considered.

3.6.1. \(p=0\) case

TabulateRate('L2norm(Pu-u)', es)  # compute rate & tabulate previous p=0 results

+-------+----------------+------+
|   h   |  L2norm(Pu-u)  | rate |
+-------+----------------+------+
|   1   | 0.611478476406 |  *   |
|  1/2  | 0.388866803112 | 0.65 |
|  1/4  | 0.198057959521 | 0.97 |
|  1/8  | 0.099744374674 | 0.99 |
|  1/16 | 0.049965710998 | 1.00 |
|  1/32 | 0.024994670078 | 1.00 |
|  1/64 | 0.012498815701 | 1.00 |
| 1/128 | 0.006249593053 | 1.00 |
+-------+----------------+------+

3.6.2. \(p=1\) case

def DisplayL2BAE(u, p=1):
    _, es, ns, _ = ProjectOnSuccessiveRefinements(u, p=p)
    errors[p] = es; ndofs[p] = ns  # store for later use
    TabulateRate('L2norm(Pu-u)', es)

DisplayL2BAE(u, p=1)

+-------+----------------+------+
|   h   |  L2norm(Pu-u)  | rate |
+-------+----------------+------+
|   1   | 0.628617219170 |  *   |
|  1/2  | 0.157887741212 | 1.99 |
|  1/4  | 0.053671603964 | 1.56 |
|  1/8  | 0.014088143973 | 1.93 |
|  1/16 | 0.003561180656 | 1.98 |
|  1/32 | 0.000892711108 | 2.00 |
|  1/64 | 0.000223328337 | 2.00 |
| 1/128 | 0.000055841488 | 2.00 |
+-------+----------------+------+

3.6.3. \(p=2\) case

DisplayL2BAE(u, p=2)

+-------+----------------+------+
|   h   |  L2norm(Pu-u)  | rate |
+-------+----------------+------+
|   1   | 0.184351530565 |  *   |
|  1/2  | 0.044795004555 | 2.04 |
|  1/4  | 0.005950170265 | 2.91 |
|  1/8  | 0.000751616385 | 2.98 |
|  1/16 | 0.000094338399 | 2.99 |
|  1/32 | 0.000011805404 | 3.00 |
|  1/64 | 0.000001476093 | 3.00 |
| 1/128 | 0.000000184525 | 3.00 |
+-------+----------------+------+

3.6.4. \(p=3\) case

DisplayL2BAE(u, p=3)

+-------+----------------+------+
|   h   |  L2norm(Pu-u)  | rate |
+-------+----------------+------+
|   1   | 0.035275243280 |  *   |
|  1/2  | 0.000765944153 | 5.53 |
|  1/4  | 0.000104425075 | 2.87 |
|  1/8  | 0.000006066675 | 4.11 |
|  1/16 | 0.000000370675 | 4.03 |
|  1/32 | 0.000000023029 | 4.01 |
|  1/64 | 0.000000001437 | 4.00 |
| 1/128 | 0.000000000090 | 4.00 |
+-------+----------------+------+

3.6.5. \(p=4\) case

DisplayL2BAE(u, p=4)

+-------+----------------+------+
|   h   |  L2norm(Pu-u)  | rate |
+-------+----------------+------+
|   1   | 0.040081194342 |  *   |
|  1/2  | 0.000991785394 | 5.34 |
|  1/4  | 0.000081246111 | 3.61 |
|  1/8  | 0.000002671363 | 4.93 |
|  1/16 | 0.000000084400 | 4.98 |
|  1/32 | 0.000000002645 | 5.00 |
|  1/64 | 0.000000000083 | 5.00 |
| 1/128 | 0.000000000003 | 5.00 |
+-------+----------------+------+

These observations clearly suggest that the rate of convergence of this BAE from \(W_{hp}\) appears to be \(p+1\) when polynomial degree \(p\) is used.

Indeed, we will prove in a later lecture that there is a constant \(C_u\) independent of the mesh size \(h\), but dependent on the smooth function \(u\), such that

\[ \inf_{ w \in W_{hp}} \| u - w \|_{L_2(\om)} \le C_u h^{p+1}. \]

Rigorous approximation estimates like these form a basic pillar of finite element theory.

Questions for discussion:

• Do you have an intuition on why BAE decreases when \(h\to 0\)?

• Why does the rate of convergence increase with increasing \(p\)?

• What happens when you try a less smooth function \(u\)?

How fast the best approximation error decreases as meshes get finer is an issue that is intimately connected to the smoothness or regularity of the function being approximated. This is an extensively studied topic in the field of approximation theory.

3.7. Accuracy vs. degrees of freedom

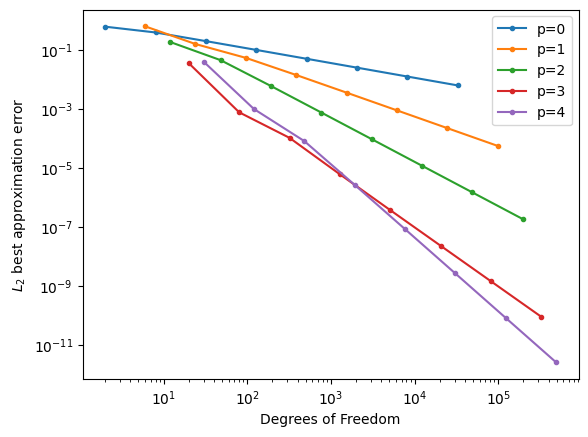

During the above computations, we have also stored \(\dim(W_{hp})\), or the number of degrees of freedom in ndofs. This is useful when trying to gauge how much bang for the buck we obtain when using various meshes and various orders \(p\).

import matplotlib.pyplot as plt

for p in range(5):
    plt.loglog(ndofs[p], errors[p], '.-', label='p=%d'%p)

plt.xlabel('Degrees of Freedom')
plt.ylabel('$L_2$ best approximation error'); plt.legend();

We see from these results that for the smooth u under consideration, the accuracy of its best approximation, measured per degree of freedom increases (quite dramatically) when using higher \(p\).

3.8. Summary

We have seen

• trial and test functions in variational equations,

• orthogonal projections and distance minimizers,

• assembly of stiffness matrix of a bilinear form,

• sparse matrix inversion facility,

• how to integrate expressions over a mesh,

• how to perform uniform refinement of an unstructured mesh,

• how to compute and tabulate convergence rates,

• how best approximation errors decrease with \(h\) and \(p\).
